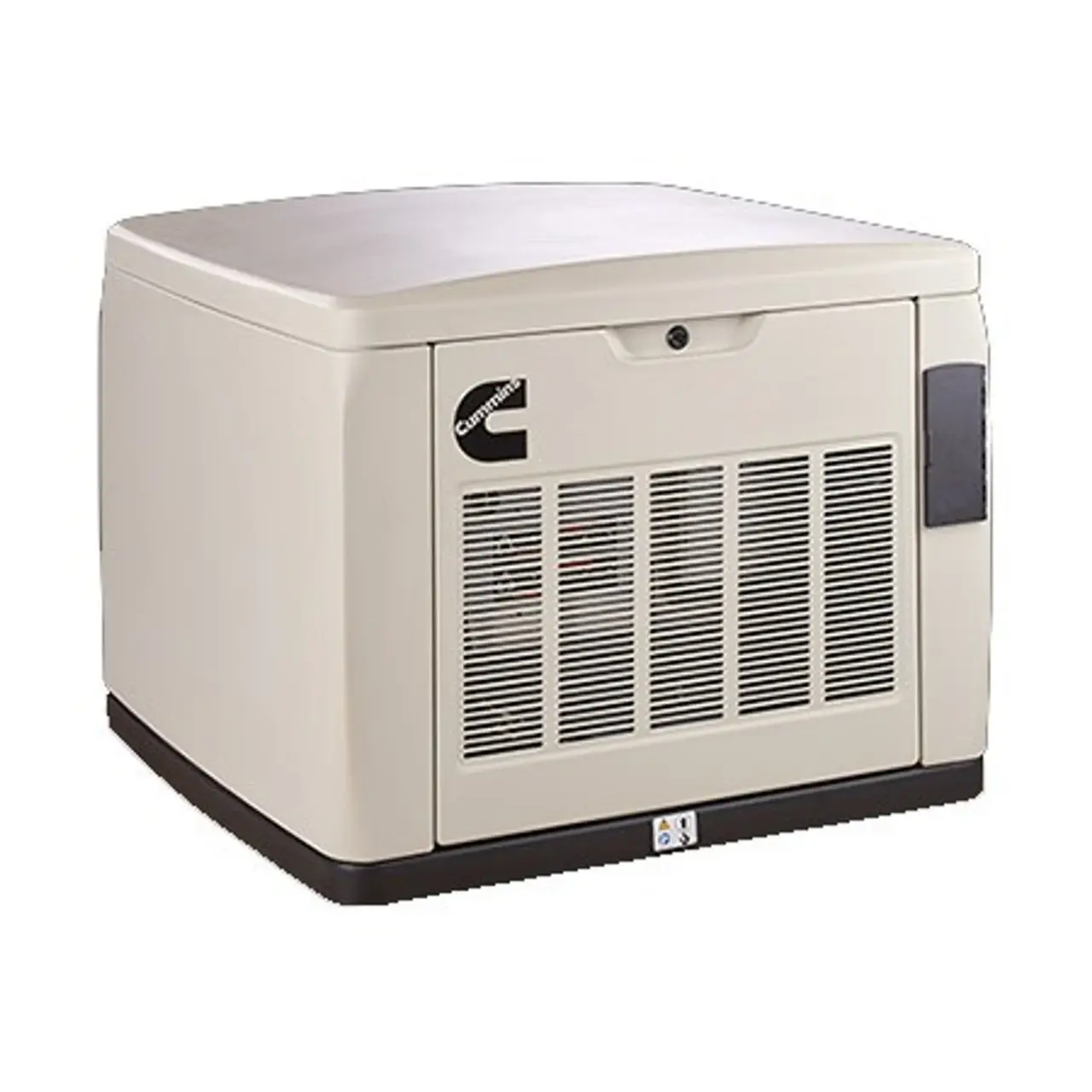

Cummins Quiet Connect Series 13 KW - RS13A

The Cummins RS13A is a premium 13kW air-cooled standby generator engineered for reliable residential backup power. It delivers quiet performance, robust weather resistance, and seamless operation during outages

Key Specifications

• Model – RS13A• Rated Power Output – 13 kW• Voltage / Frequency – 120/240V AC, 60 Hz• Phase – Single-phase• Fuel Type – Natural Gas (NG) or Propane Vapor (LPV)• Engine – Cummins QSJ999G, V-twin, air-cooled• Displacement – 999 cc• Rated Amperage – 54.2 Amps• Noise Level – 65 dB(A) at 23 ft (7 m)• Dimensions – 34.1 x 36.0 x 27.3 inches (865 x 915 x 694 mm)• Weight – 479 lbs (217 kg)• Enclosure – Aluminum exterior, galvanized steel interior, NEMA 3R rated• Installation Clearance – 18 inches (NFPA 37 compliant)• Operating Temperature – -40°F to 122°F (-40°C to 50°C)• Connectivity – Cummins Cloud Connect™ Wi-Fi monitoring• User Interface – LED display and remote monitoring via web/app• Transfer Switch – Compatible with automatic transfer switches (sold separately)• Protections – Overload, high temperature, low oil pressure, and more• Certifications – UL 2200, CSA C22.2 No. 100, EPA Certified• Warranty – 5-Year / 2,000-hour limited warranty
